How to remove heater fan/box (ek)

[Bushell]

So I decided to tackle this at lunch time, one person said I could do it and one person said I couldn't so for the sake of 7 bolts and a few clips I gave it a shot.
Also please bare with me as this is my first 'how to' hope at least one person finds this helpful

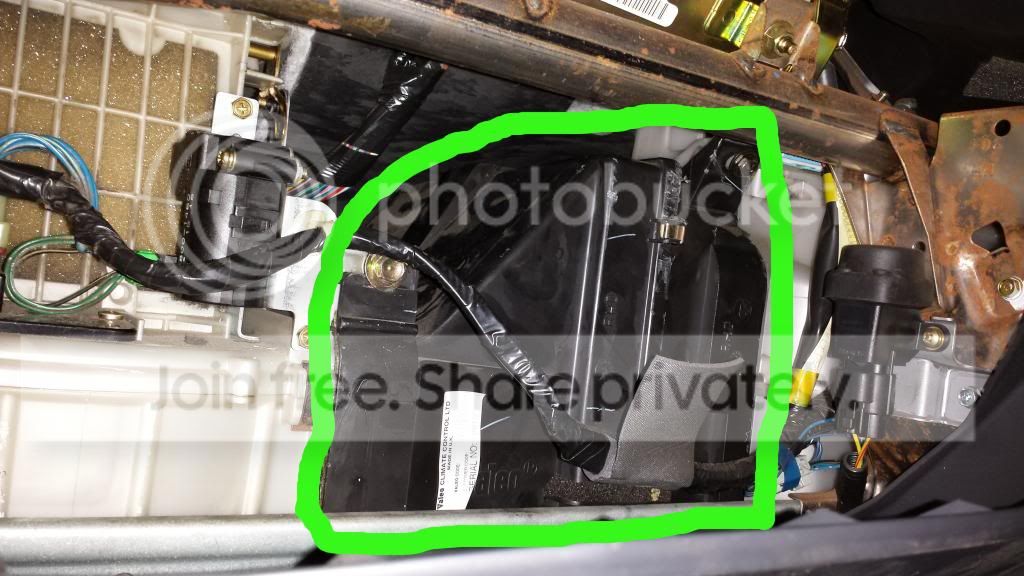

Step 1:
Remove Glove box, there is 2 screws at the bottom of the glove box to remove



Step 2:
Remove plastic trim on the left hand side covering the ecu



Step 3:

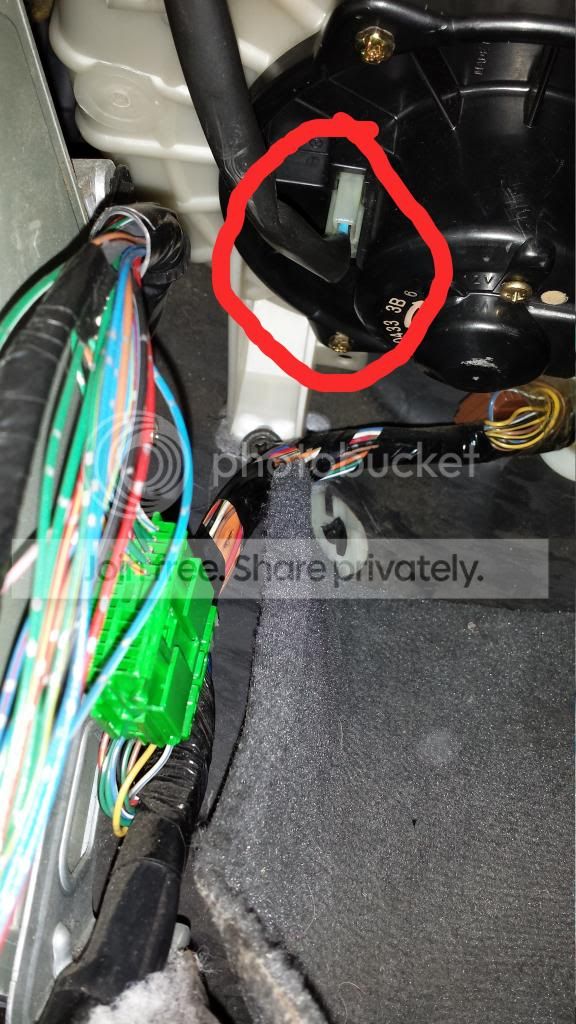

Remove the connectors (3 of them) 2 on the top of the fan and one on the bottom




Step 4:

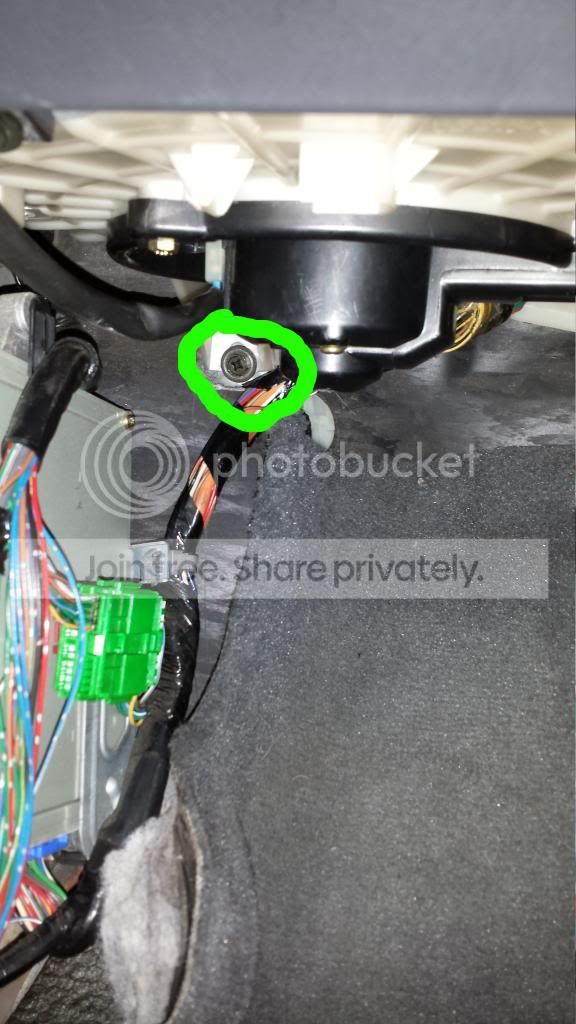

Remove the 5 bolts pictured below





Step 5:
Separate the black bit on the left from the white section, Remove this first, its a bit awkward but just need to be patient, I moved it down slightly then tilted the top towards the fron of the car and pulled it out under the metal bar.



Step 6:
Remove the white part, this will literally fall out, very easy once the black part is removed.



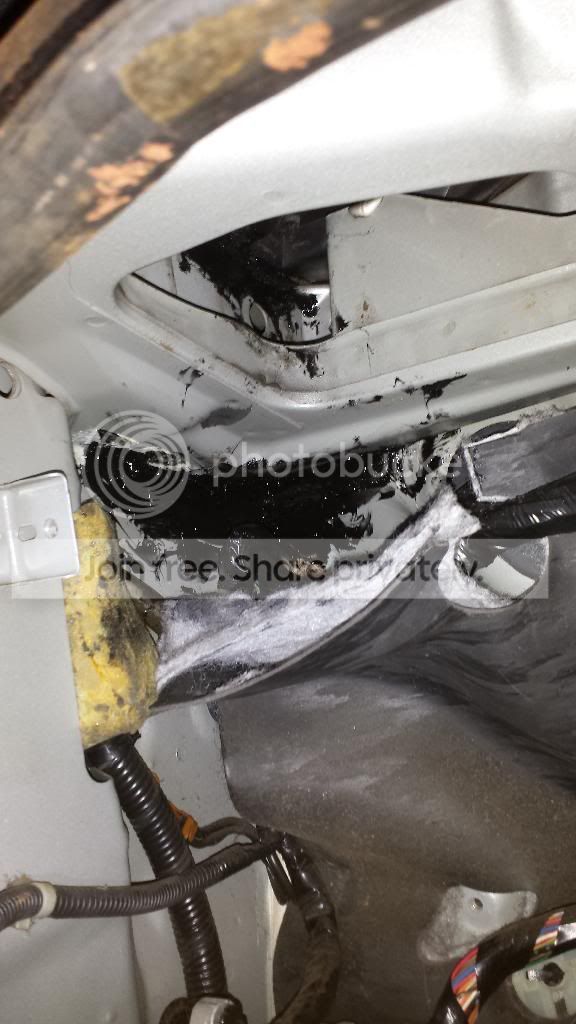

I did this to try and locate a water leak without removing the dash, which I did then attacked with sealant, not the tidiest of jobs but will hopefully do the job, not sure if it has been effective yet as I was kind of rushed as I did on my lunch break, but was worth a shot





Thanks for reading
